Power control with SCR (CB23965E)

Details
Written by: Newton C. Braga

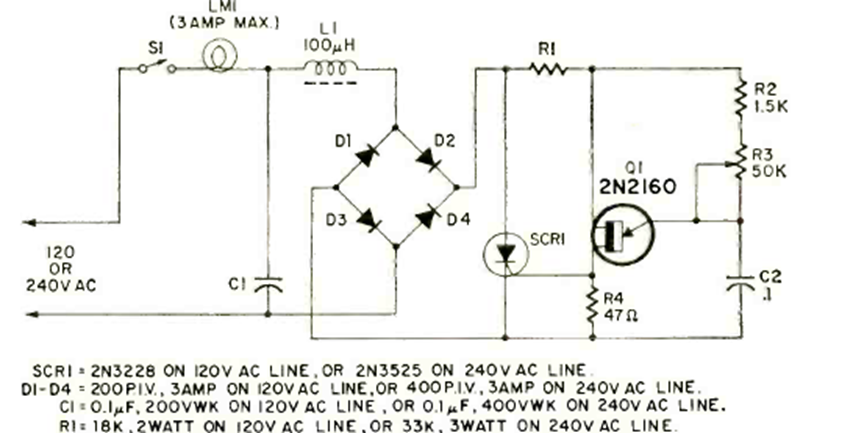

This circuit was found in the July 1969 Radio Electronics magazine. The circuit controls resistive loads and universal motors with power according to the SCR used.




| Clique na imagem para ampliar |
