Portable power supply (CB23651E)

Details
Written by: Newton C. Braga

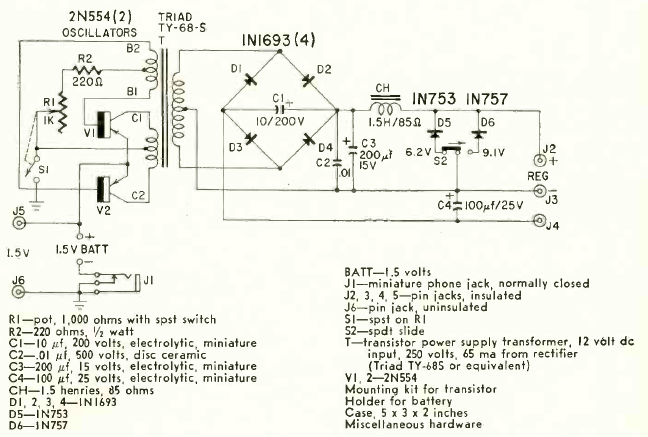

This circuit that converts voltages from a battery into high voltages for tube circuits was found in Radio Electronics magazine from February 1960. The transformer is of a special type.
