60 kHz weather station receiver (CB22174E)

Details
Written by: Newton C. Braga

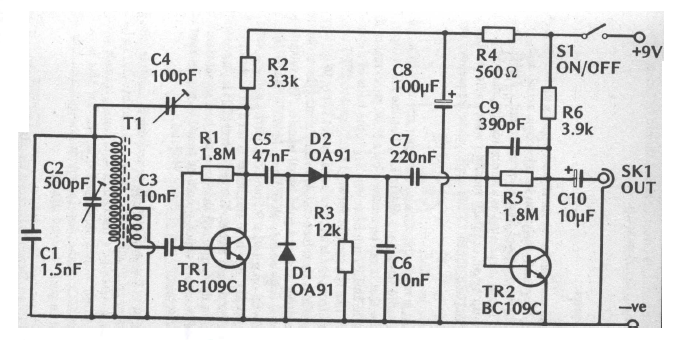

Obtained from an English publication in the 1980s, when a weather station operated in that country at 60 kHz, this circuit employed only two general-purpose transistors.
