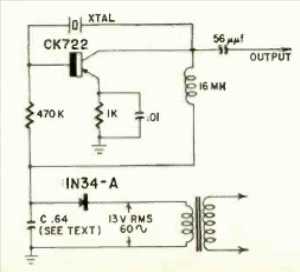

In the figure we have an old circuit of a crystal oscillator modulated by an audio signal. The circuit is from a Radio Electronics from May 1959. The transistor is the CK722.
Modulated crystal oscillator (CB23601E)
- Details
- Written by: Newton C. Braga
