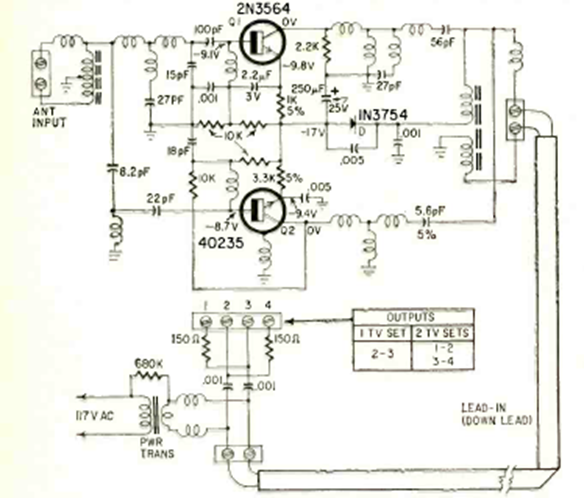

This old VHF TV booster that also serves FM was found in Radio Electronics magazine from April 1967. The transistors are from the time, and it works up to 890 MHz, which is the extreme of the UFH range at the time.
TV Booster (CB23771E)
- Details
- Written by: Newton C. Braga
