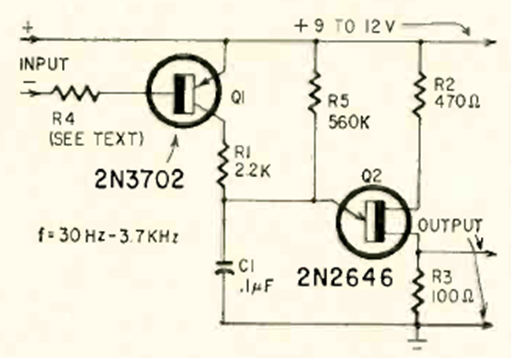

Found in Radio Electronics magazine from June 1968, this circuit produces signals from 30 Hz to 3.7 kHz depending on the input voltage. The range of values can be changed by changing C1.
Voltage to frequency converter (CB23910E)
- Details
- Written by: Newton C. Braga
