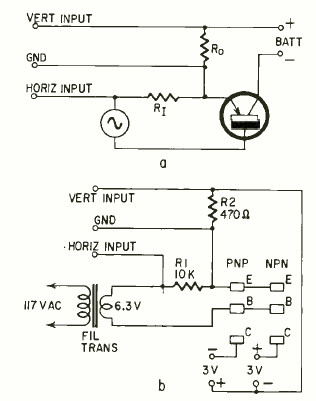

Published in Radio Electronics magazine in May 1963, the purpose of this circuit is to visualize the characteristic curves of a transistor on the oscilloscope. The reference signal is taken from the power grid.
Curve viewer on oscilloscope (CB23877E)
- Details
- Written by: Newton C. Braga
