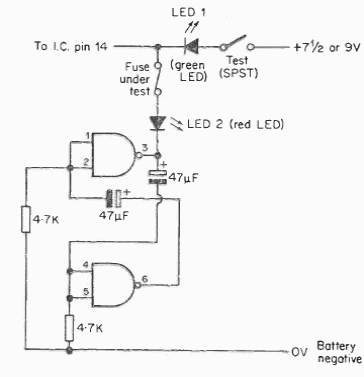

This circuit with the 7400 is for testing fuses from a 7.5 to 9 V power line. The LED flashes at the frequency given by the capacitors if the fuse is good.
Fuse Test 7400 (CB22417E)
- Details
- Written by: Newton C. Braga
This circuit with the 7400 is for testing fuses from a 7.5 to 9 V power line. The LED flashes at the frequency given by the capacitors if the fuse is good.
