Clamp AC Microammeter (CB23563E)

Details
Written by: Newton C. Braga

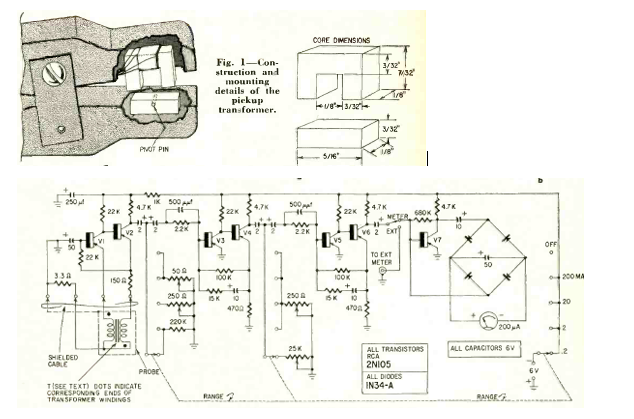

In the figure we have the circuit of a clamp-type microammeter described in the Radio Electronics magazine of February 1960. The circuit also gives information about the magnetic sensor used.
