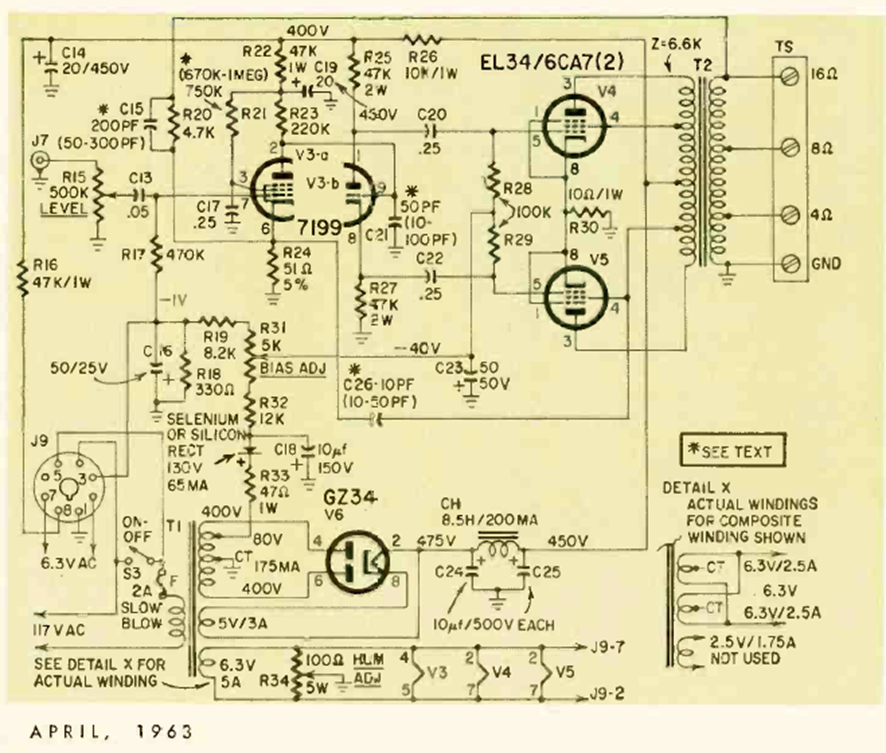

This excellent 30 W tube amplifier appeared in the April 1963 Radio Electronics magazine that taught how to assemble it. The critical components in our time are tubes and transformers.
| Clique na imagem para ampliar |
30W Amplifier (T1783E)
- Details
- Written by: Newton C. Braga
