Audio crossover filter (CB23743E)

Details
Written by: Newton C. Braga

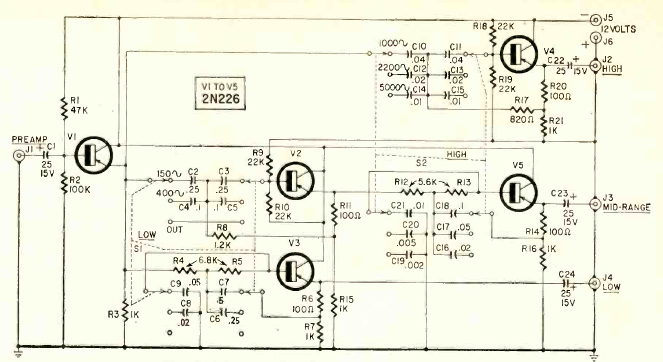

We found this active crossover in a Radio Electronics magazine from June 1961. Note the different adjustment ranges. The signal must be applied to the amplifier input.




| Clique na imagem para ampliar |
