Thermal control with thermistors (CB23578E)

Details: Written by: Newton C. Braga

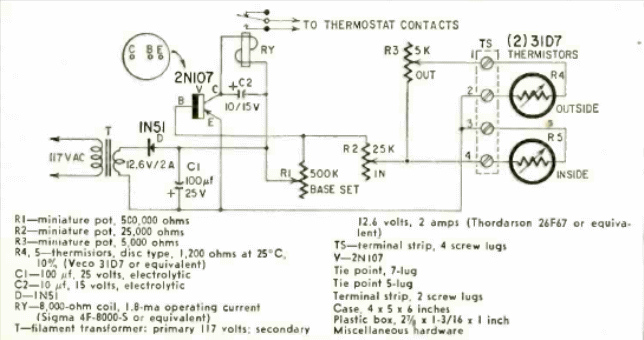

This thermal control circuit appeared in Radio Electronics magazine in October 1958. The circuit is powered by the power grid and has two sensors that operate in a differential mode.
