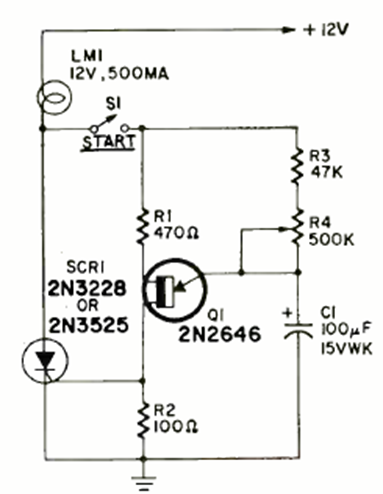

This circuit was found in the July 1969 issue of Radio Electronics magazine. It also appeared in an English publication by R. Marston. The circuit is applicable to virtually any sensitive SCR.
SCR Delayed Drive Circuit (CB23960E)
- Details
- Written by: Newton C. Braga
