Binary counter (CB22437E)
- Details
- Written by: Newton C. Braga

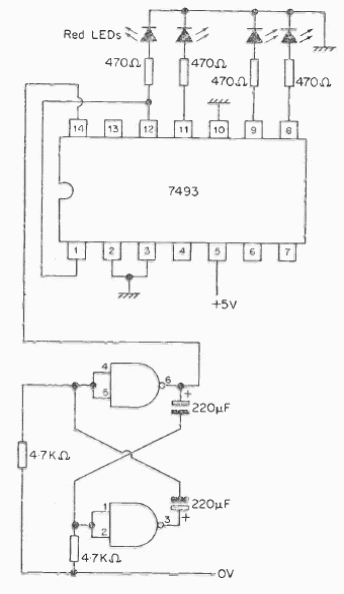

This TTL circuit with the 7493 makes the binary count of the pulses sent by a flip-flop with the 7400. The supply must be made with 5 V.
