Low Distortion OTL Amplifier (CB23538E)

Details
Written by: Newton C. Braga

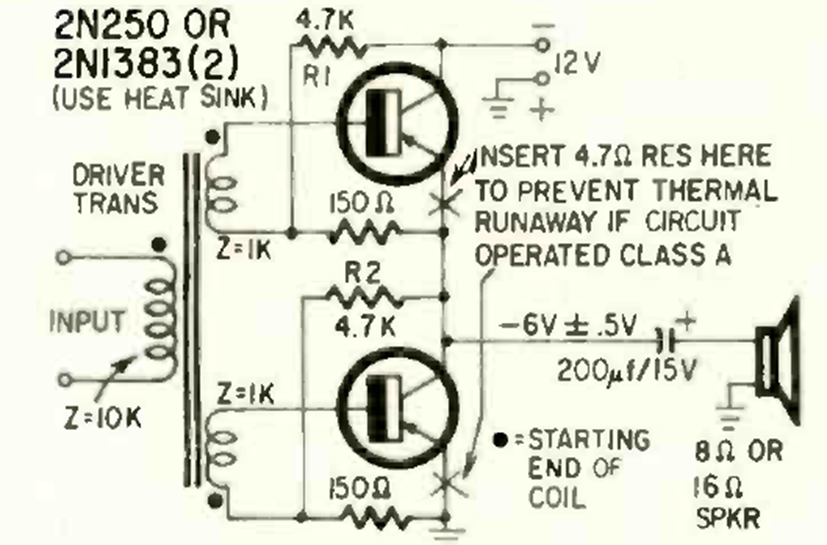

This amplifier stage without an output transformer was found in Radio Electronics magazine from October 1963. The supply is 12 V, and the output is 8 or 16 ohms.
