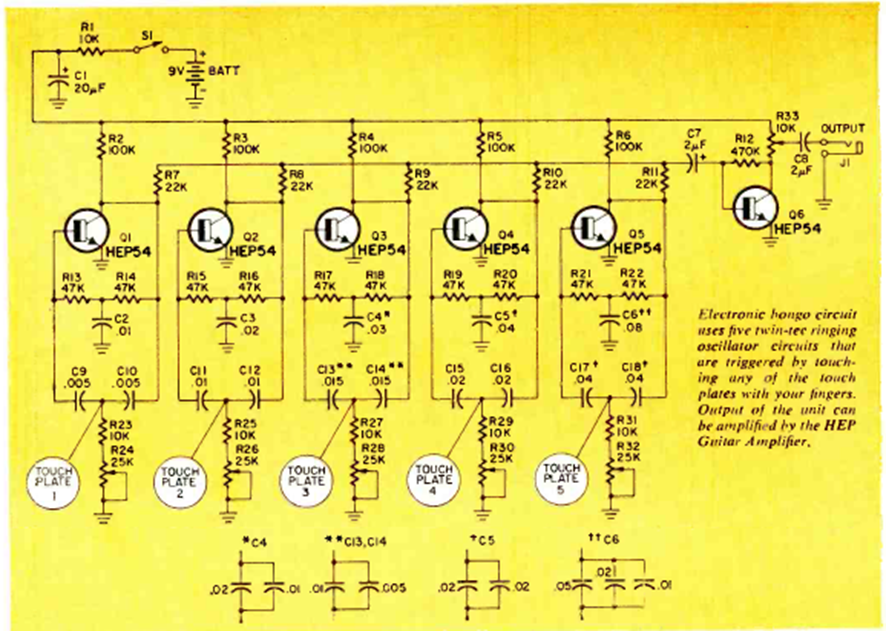

The article that teaches the assembly is from a Radio Electronics issue from July 1969. The circuit can be easily implemented with modern transistors such as the BC548. The output should be connected to an amplifier.
