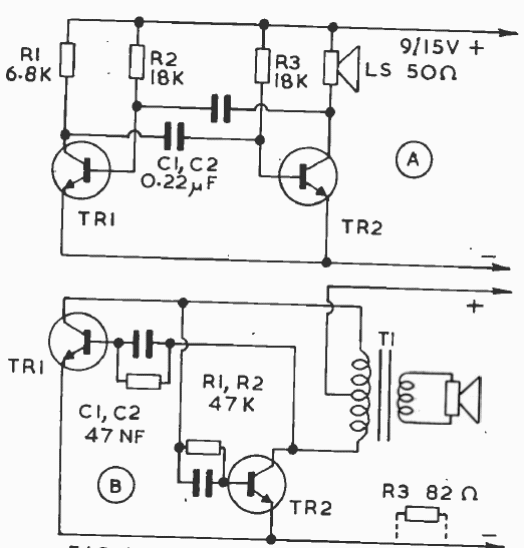

In the figure we have two audio oscillators to be used in small alarms and other devices. The circuit is from an old documentation. Transistors can be the BC548.
Audio oscillator circuits (CB22089E)
- Details
- Written by: Newton C. Braga
In the figure we have two audio oscillators to be used in small alarms and other devices. The circuit is from an old documentation. Transistors can be the BC548.
