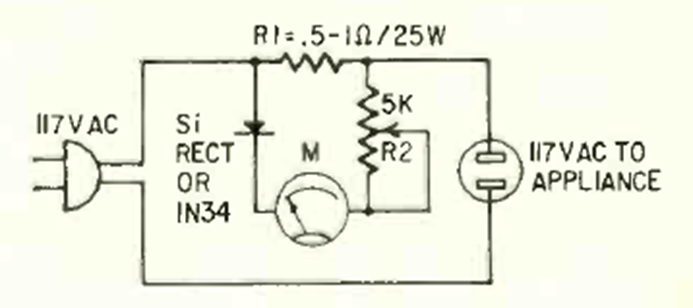

In the figure we have a simple circuit to measure the current in an electronic device and thus determine its consumption. The meter can be a common multimeter, on the appropriate voltage scale.
| Clique na imagem para ampliar |
Power Test for Home Appliances (CB23706E)
- Details
- Written by: Newton C. Braga
