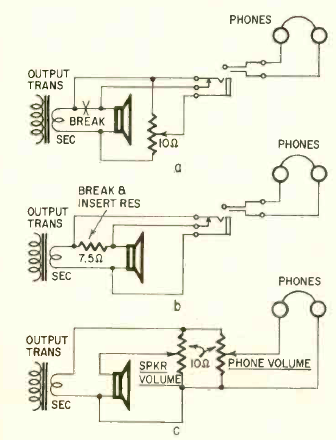

The figure shows three circuits for using headphones in amplifiers with speakers that do not have additional outputs. The circuit is from a Radio Electronics from December 1961.
Headphone Extensions (CB23790E)
- Details
- Written by: Newton C. Braga
The figure shows three circuits for using headphones in amplifiers with speakers that do not have additional outputs. The circuit is from a Radio Electronics from December 1961.
