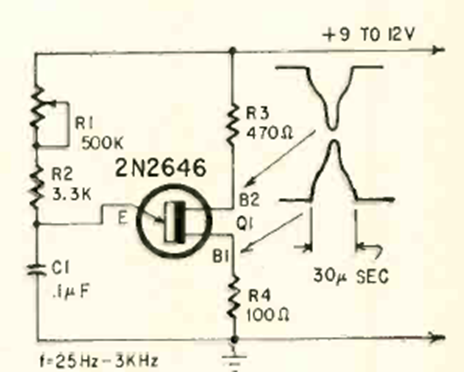

This simple unijunction transistor application appeared in Radio Electronics magazine in June 1968. The circuit generates pulses of 25 Hz to 3 kHz with the values of the components used.
Unijunction pulse generator (CB23905E)
- Details
- Written by: Newton C. Braga
