Slave flash (CB23750E)

Details
Written by: Newton C. Braga

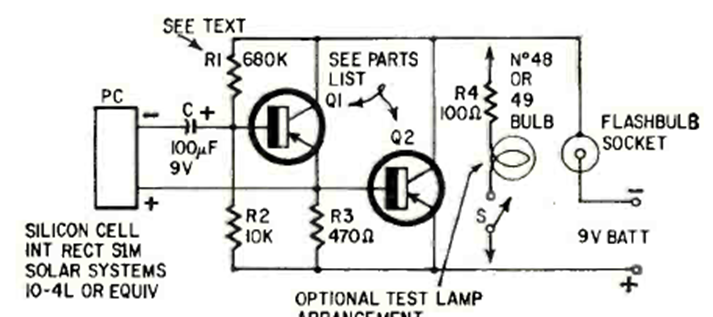

This circuit for old flashes with xenon lamps was found in a Radio Electronics magazine from June 1966. The sensor is a photoelectric cell from the time. Power is supplied by a 9 V battery.
