4 transistors 300 mW stage (CB23534E)

Details
Written by: Newton C. Braga

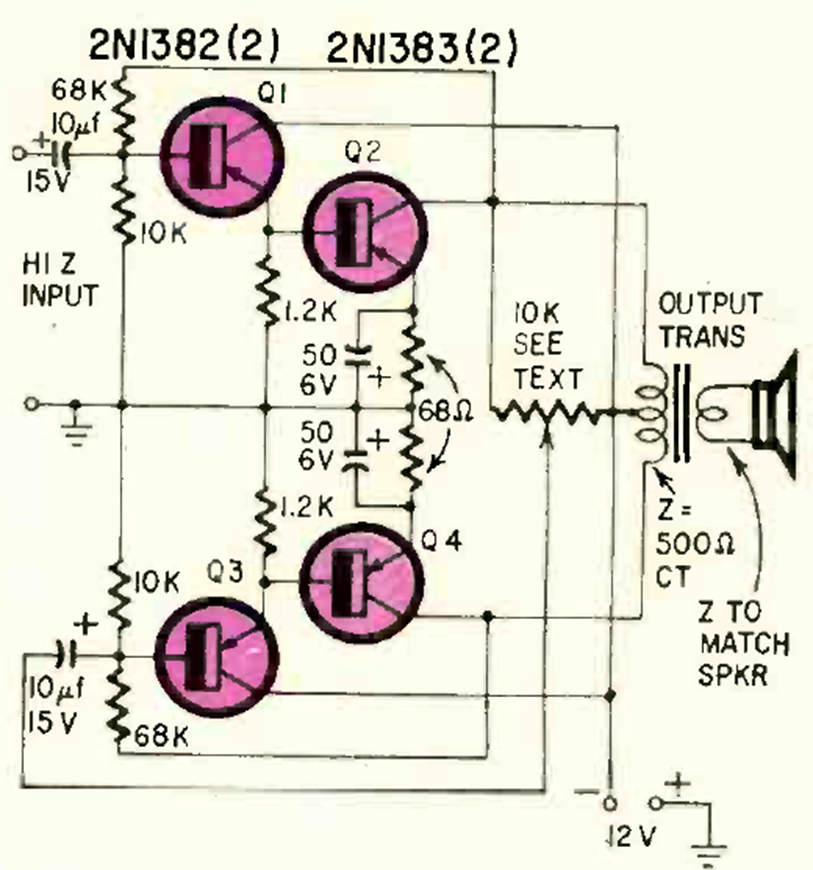

We found this circuit in a Radio Electronics from October 1963. The circuit uses an output transformer with a center tap. The trimpot is adjusted for higher gain and lower quiescent current.






| Clique na imagem para ampliar |
