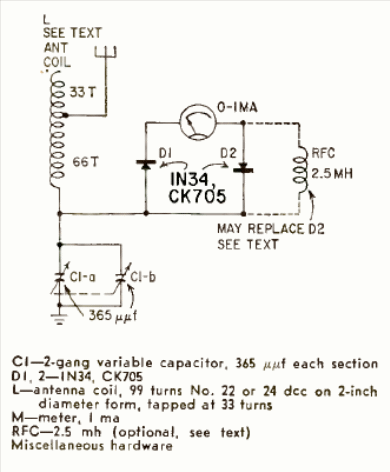

This circuit is suitable for experiments with self-powered radios to verify the available signal strength. The instrument can be a higher sensitivity type or a multimeter. The circuit is from a Radio Electronics from April 1958.
Signal Strength Meter (CB23597E)
- Details
- Written by: Newton C. Braga
