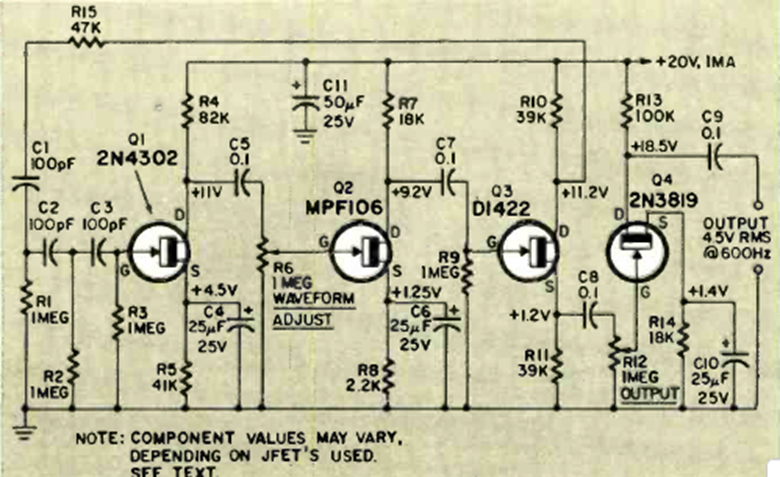

This well-designed 4-transistor JFET audio oscillator circuit was found in the June 1969 issue of Radio Electronics magazine. The circuit produces a sinusoidal signal with a frequency determined by C1, C2, and C3, and by R1, R2, and R3, which can be varied.
