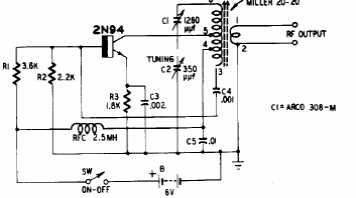

This circuit was obtained from an American documentation from the 50's. It is a Hartley oscillator that can operate between 500 kHz and 4.5 MHz. The original transistor is a germanium type.
Self-excited Oscillator (CB22258E)
- Details
- Written by: Newton C. Braga
