Two Transistor Audio stage (CB23533E)

Details
Written by: Newton C. Braga

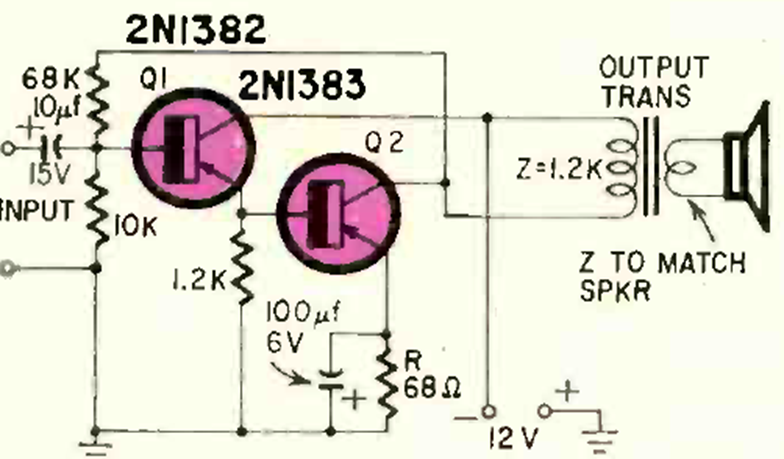

This direct coupled circuit operates in class AB with good gain. The circuit is powered by 12 V. We found it in a Radio Electronics from October 1963.




| Clique na imagem para ampliar |
