Siren Sound (CB23943E)

Details
Written by: Newton C. Braga

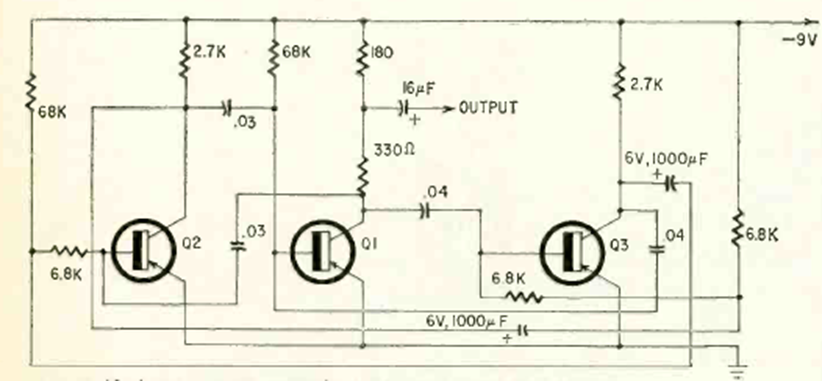

This circuit generates a siren sound. It was found in the April 1969 Radio Electronics magazine. The output signal is to be applied to an external amplifier.




| Clique na imagem para ampliar |
