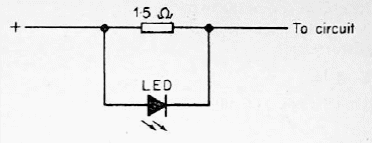

In this circuit, the LED lights up when the current is such that multiplied by the resistor value results in the minimum lighting voltage of the LED used. We found it in an English publication.
Overload indicator (CB22131E)
- Details
- Written by: Newton C. Braga
