Playback amplifier (CB23522E)

Details
Written by: Newton C. Braga

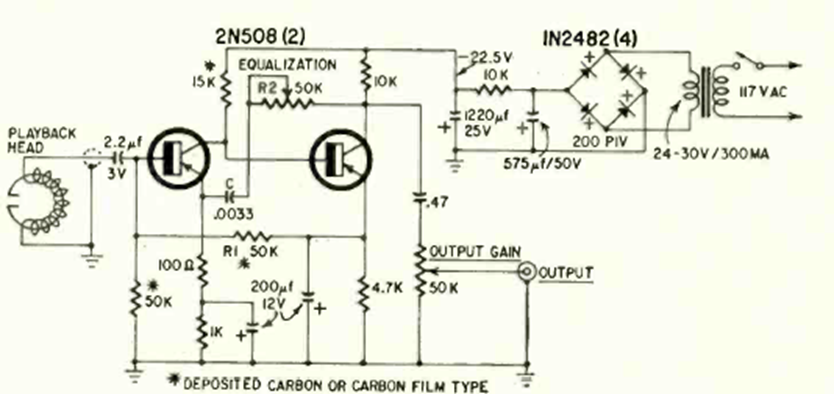

This amplifier for recording heads was found in a Radio Electronics from September 1963. The circuit uses period transistors but can be modified to work with modern transistors.




| Clique na imagem para ampliar |
