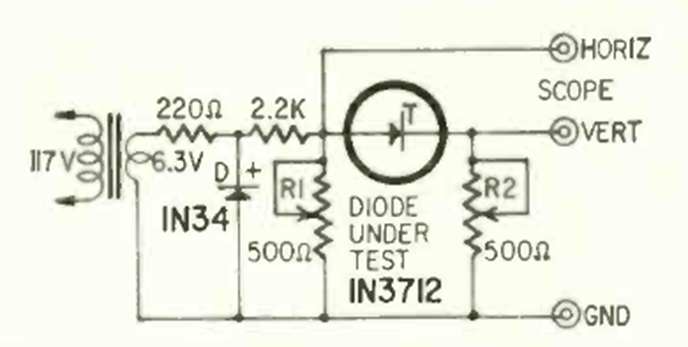

This circuit was found in a Radio Electronics from February 1966. With it it is possible to trace the curve of a tunnel diode visualizing it on an oscilloscope.
| Clique na imagem para ampliar |
Tunnel diode curve tracer (CB23704E)
- Details
- Written by: Newton C. Braga
