Transistor Analyzer (CB22569E)
- Details
- Written by: Newton C. Braga

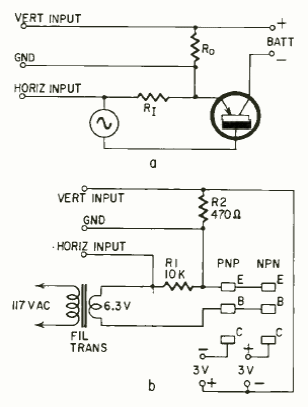

This circuit has the function of observing the characteristic curve of a transistor on the oscilloscope. The circuit was found in the May 1953 Radio Electronics magazine.
