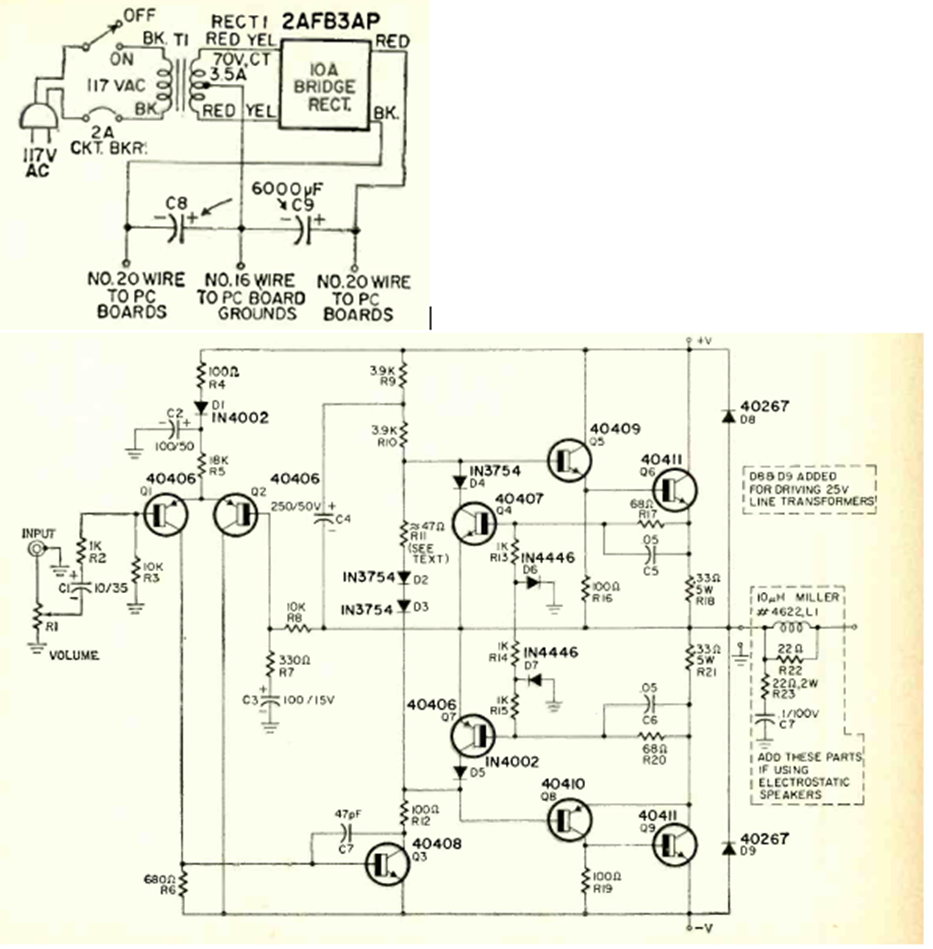

The assembly of this amplifier was described in an article in the magazine Radio Electronics from April 1969. The transistors are power types of the time, and the output is complementary without the need for a transformer. The supply voltage is high, coming from a 70 V x 3.5 A transformer.
