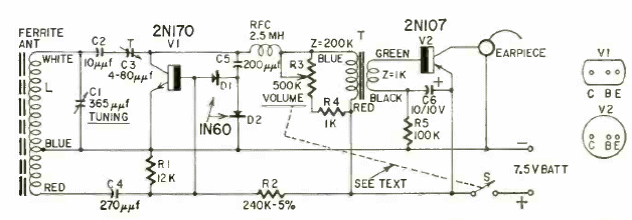

This is one of the first transistorized receivers (2N107) published in the Radio Electronics magazine of September 1950. The circuit uses high impedance magnetic miniature earphones and tunes to the medium wave band.
2-Transistor Receiver (CB22517E)
- Details
- Written by: Newton C. Braga
