TTL binary adder (CB22430E)

Details
Written by: Newton C. Braga

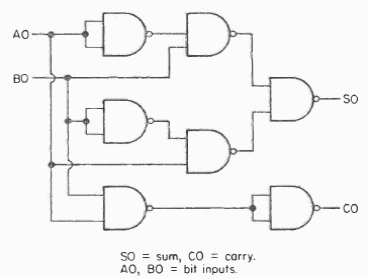

This circuit is based entirely on TTL gates. The circuit must be powered by a voltage of 5 V.
