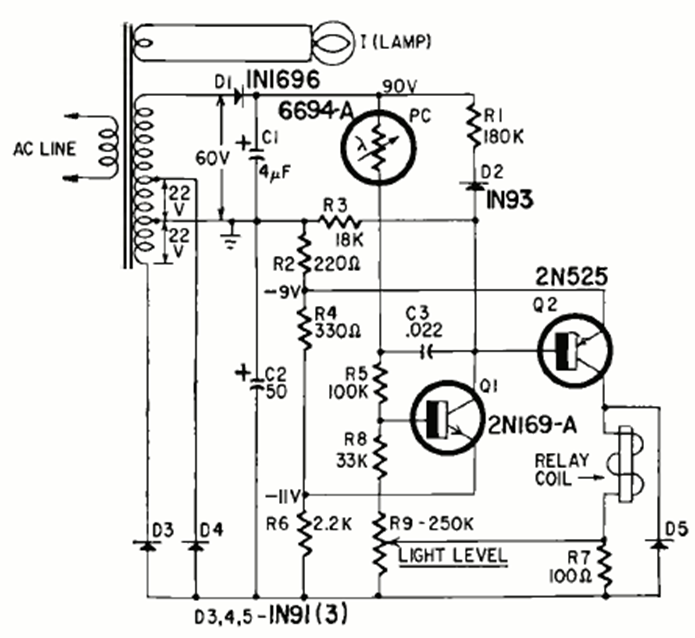

This fast trigger circuit allows the counting of up to 300 pulses per minute. The circuit is from a Radio Electronics from October 1966. The circuit uses a voltage relay in accordance with the transformer. The time response is 40 ms.
| Clique na imagem para ampliar |
