Super regenerative detector (CB24292E)

Details
Written by: Newton C. Braga

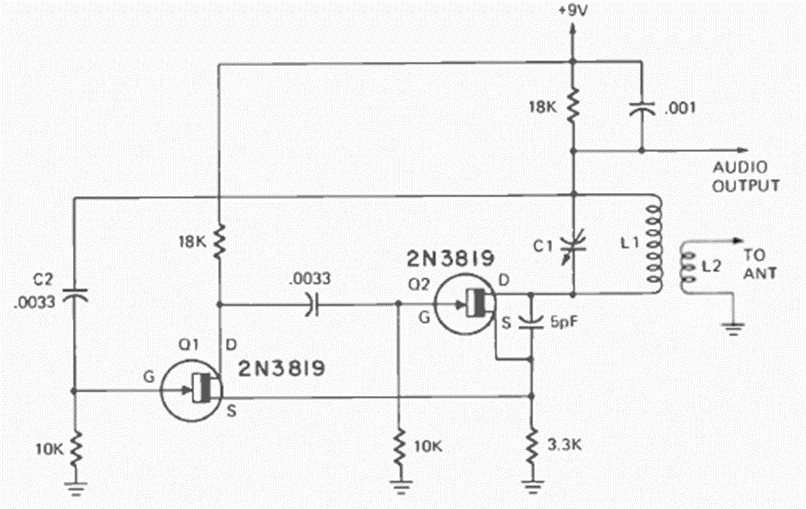

This circuit with an unusual configuration was found in the January 1974 issue of Radio Electronics magazine. The frequency is given by L1/C1, and the transistors admit equivalents.
