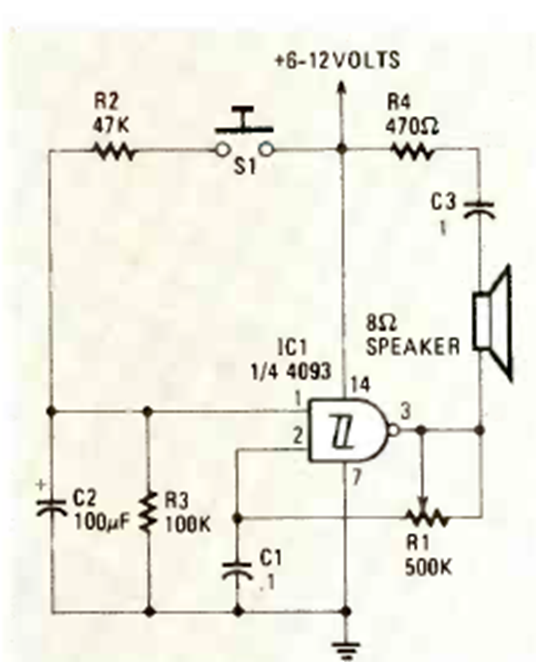

This simple rising and falling siren was found in the October 1985 issue of Radio Electronics magazine. The circuit has no amplifier stage for the speaker. Adding one can greatly improve performance.
555 Siren (CB24916E)
- Details
- Written by: Newton C. Braga
