1 kHz Oscillator (CB24086E)

Details
Written by: Newton C. Braga

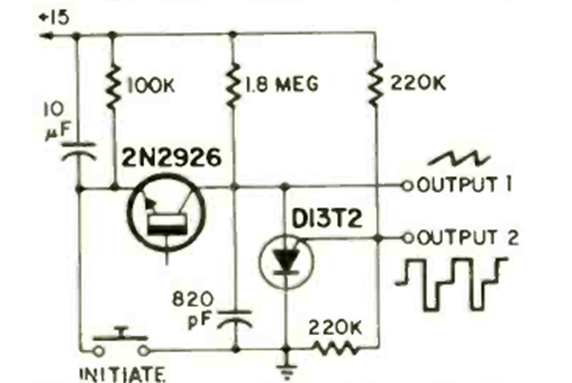

This oscillator produces short duration pulses using a PUT. The circuit is from a Radio Electronics from November 1970. The frequency depends on the capacitor. Observe the waveform of the generated signal.
