30 MHz Frequency Counter (CB24540E)

Details
Written by: Newton C. Braga

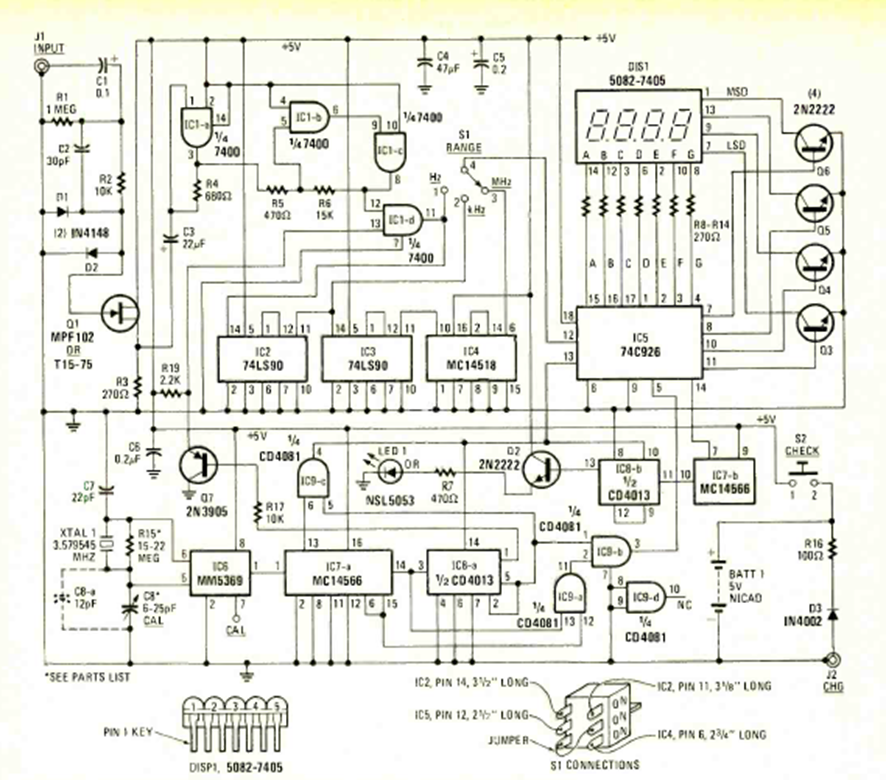

This circuit is from March 1978 Radio Electronics. The 4-digit circuit uses a period module and is battery powered. The main integrated circuits are CMOS and TLL.




| Clique na imagem para ampliar |
