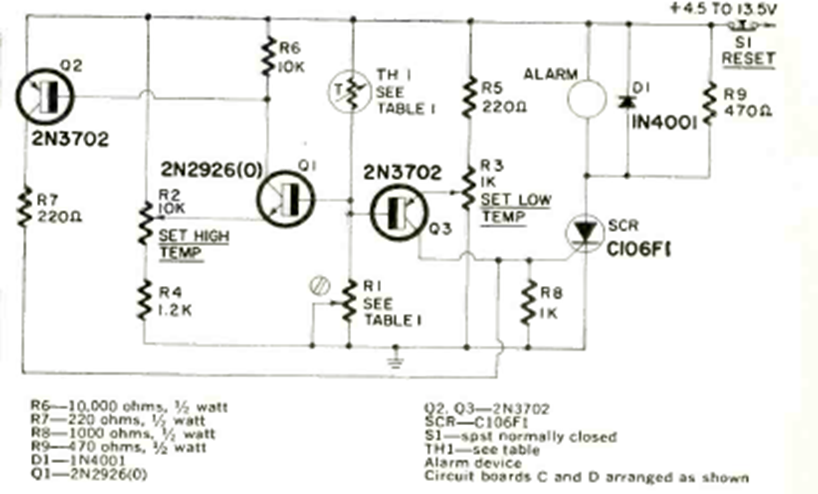

This temperature alarm has maximum and minimum settings. We found it in the September 1971 Radio Electronics magazine. The sensor is an NTC, and the buzzer can be replaced with a relay of appropriate voltage.
| Clique na imagem para ampliar |
Thermostat (CB24165E)
- Details
- Written by: Newton C. Braga
