Changing a voltmeter scale (CB24261E)
- Details
- Written by: Newton C. Braga

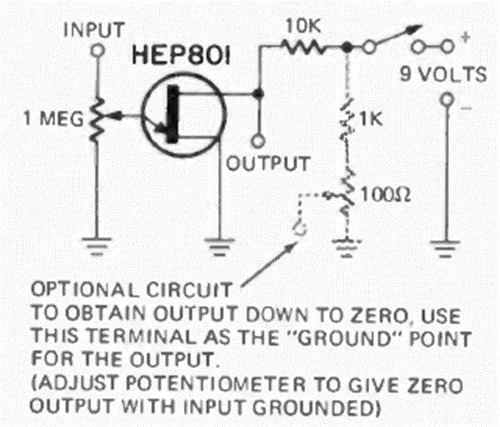

The circuit shown is from a September 1973 Radio Electronics. It reduces the full scale of a voltmeter from 5 V to 0.5 V or 1 V, depending on the setting.
