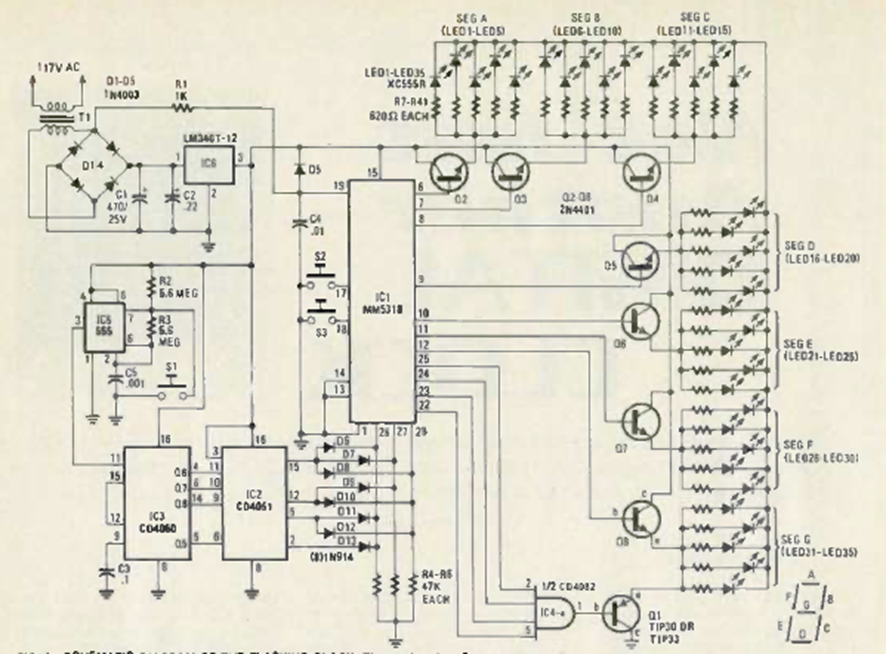

Using the LM3914 this unusual digital clock uses a Bargraph LED indicator. The LEDs are the segments of a 7-segment display. We found it in February 1980 Radio Electronics magazine.
| Clique na imagem para ampliar |
Digital Clock (CB24616E)
- Details
- Written by: Newton C. Braga
