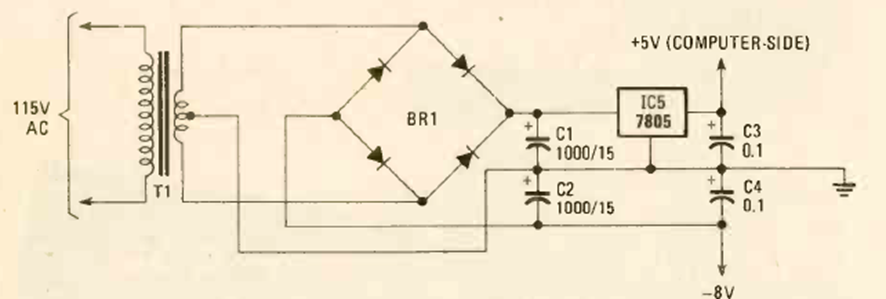

This interesting symmetrical power supply circuit was found in the January 1981 issue of Radio Electronics magazine. The maximum current is 1 A and the regulator must be equipped with a heat sink.
| Clique na imagem para ampliar |
Symmetrical power supply with a regulator (CB24676E)
