Differential Detector for Relay (CB24084E)

Details
Written by: Newton C. Braga

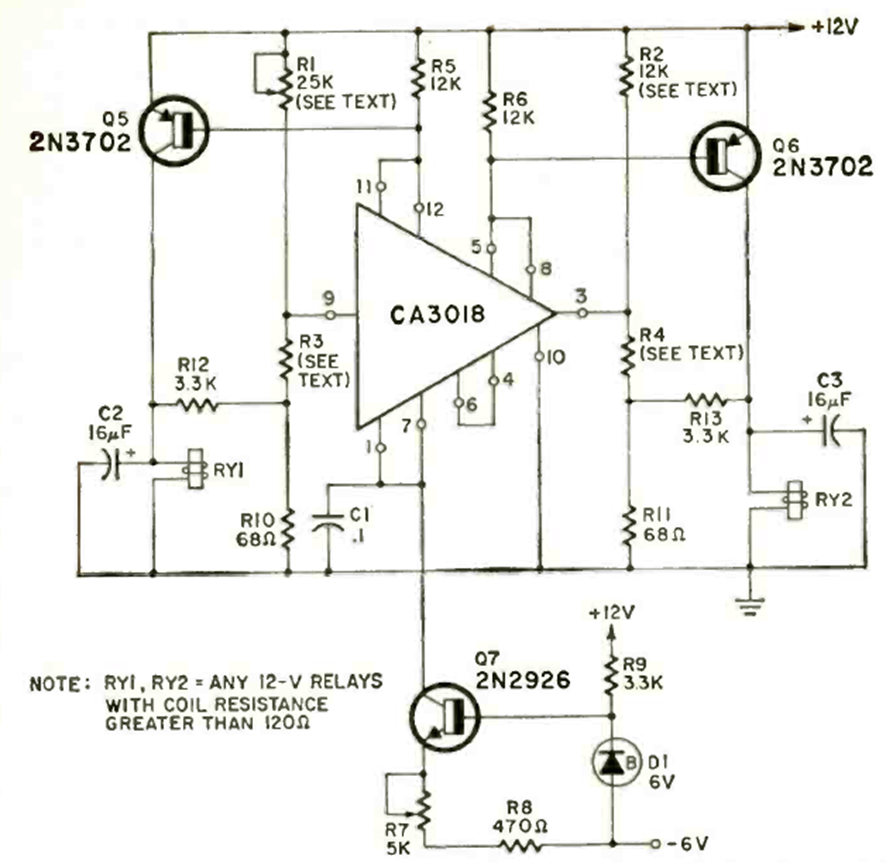

We found this circuit in the October 1970 issue of Radio Electronics magazine. It uses the then-new CA3018 integrated circuit from RCA. Some resistors are required for best performance.
