Simple Oscillator (CB24330E)

Details
Written by: Newton C. Braga

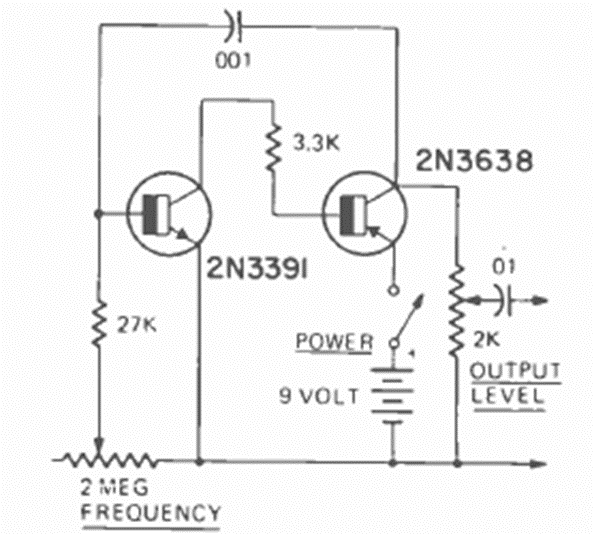

This common oscillator configuration, but designed differently, was found in the October 1974 issue of Radio Electronics magazine. The transistors are general purpose. The capacitor determines the frequency.
