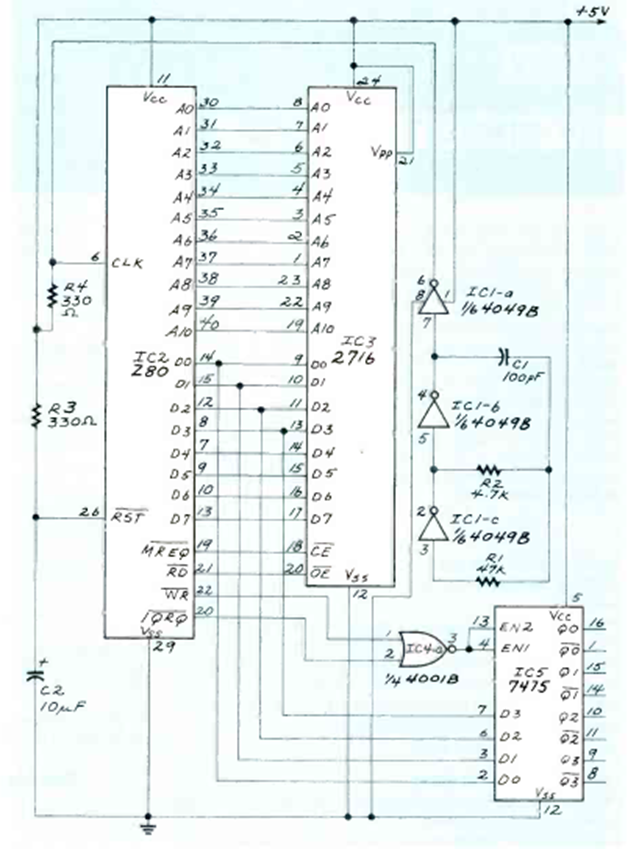

Simple Circuit for the Z80 (CB24927E)
- Details
- Written by: Newton C. Braga
Advertised as the world's simplest circuit for a Z80, this one is from Radio Electronics magazine, December 1985. Note the supply voltages and the output.
