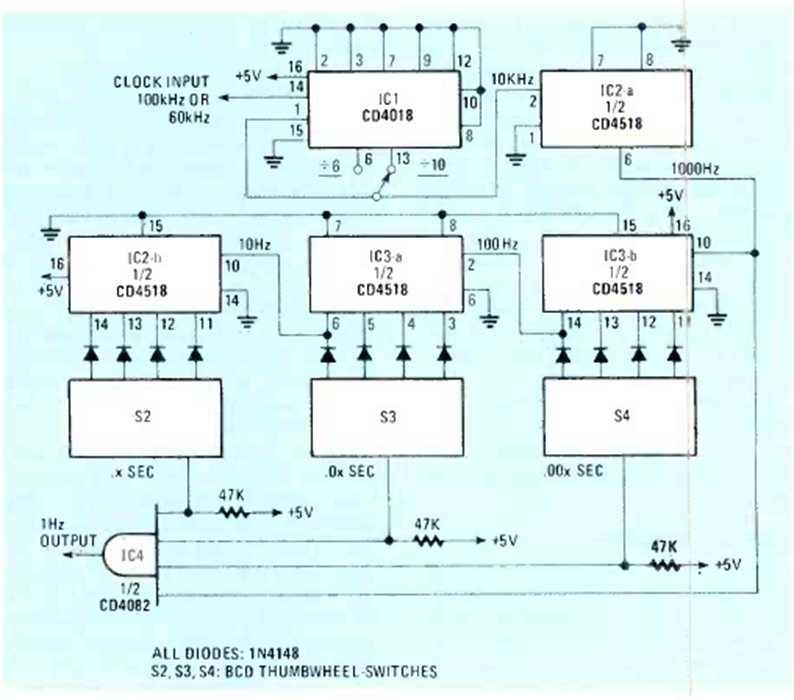

This circuit for counting down pulses was found in the September 1983 issue of Radio Electronics magazine. It was suggested in an article that taught the use of signals from weather stations such as WWV.
| Clique na imagem para ampliar |
Variable Phase Counter (CB24763E)
- Details
- Written by: Newton C. Braga
