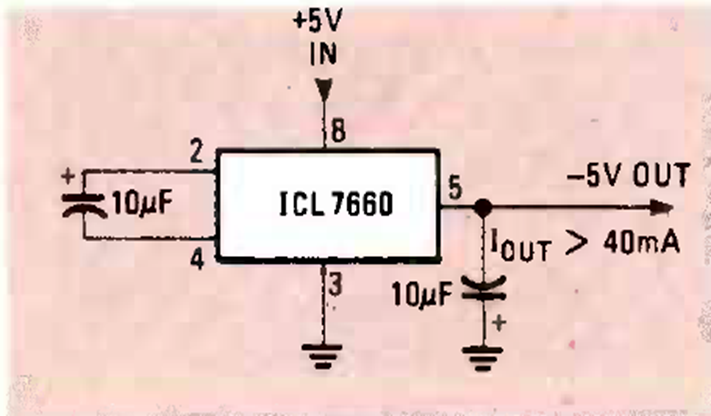

This circuit was found in the May 1982 issue of Radio Electronics magazine. The circuit inverts the polarity of a power supply to obtain a voltage of -5 V.
