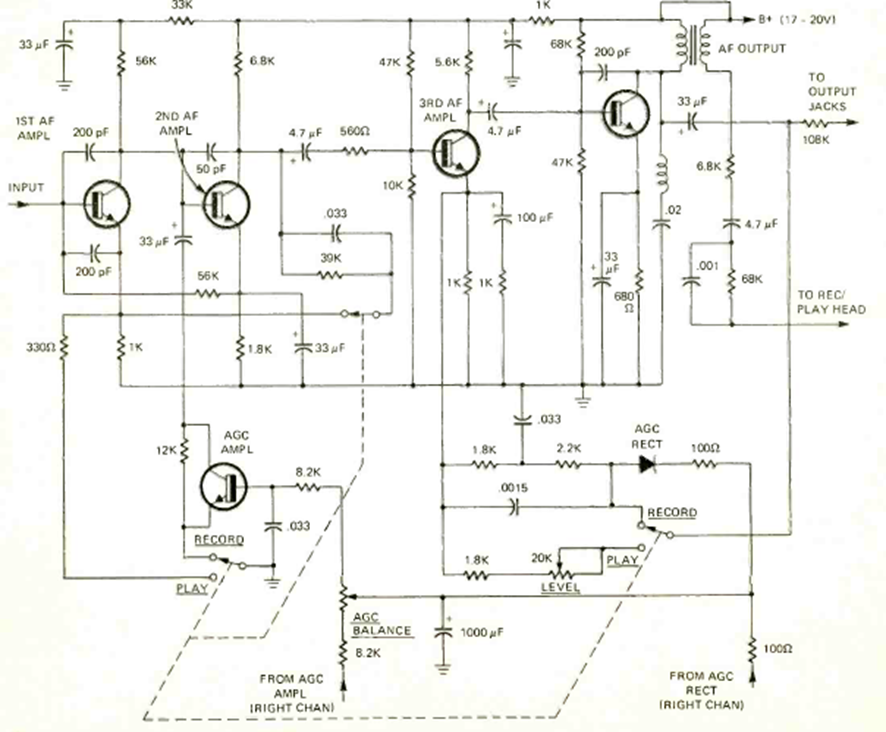

We found this circuit for old tape recorders in the December 1972 Radio Electronics magazine. The circuit uses 4 transistors and must be powered with the indicated voltages. The power supply is not provided.
| Clique na imagem para ampliar |
Automatic Gain Control for Recording (CB24224E)
- Details
- Written by: Newton C. Braga
