Audio Attenuator (CB24677E)

Details
Written by: Newton C. Braga

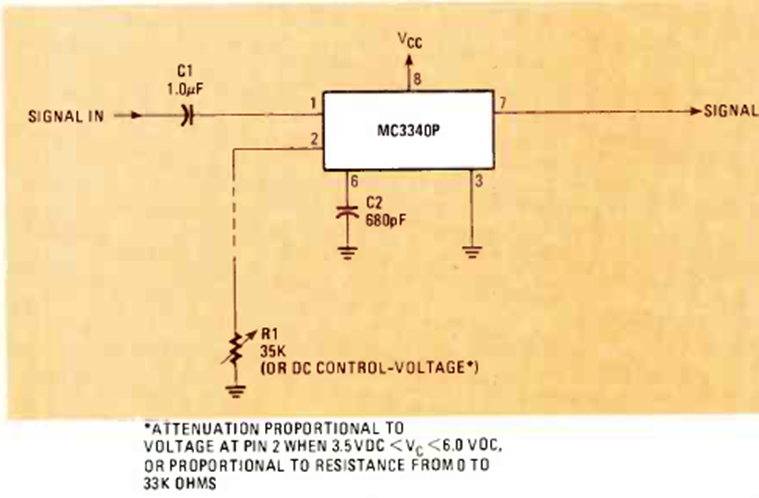

This circuit was found in the February 1981 issue of Radio Electronics magazine. The circuit uses an active component of the time and is suitable for audio signals.
